Automann

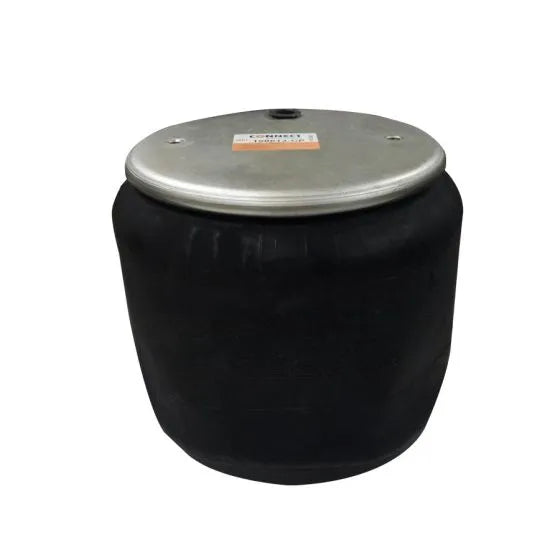

AB1DK23I-8813 - Air Spring Rolling Lobe
AB1DK23I-8813 - Air Spring Rolling Lobe
Regular price
$104.39
Regular price
Sale price
$104.39
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Applications | Kenworth Peterbilt |
| Type | Rolling Lobe |
| Brand | Continental/ econoride/ contitech/ automann |
| Automann Bellows# | 1DK23I |
| Firestone Bellows# | 1T15M-4 |
| Contitech Bellows# | 9 10-13.5 |
| Load (Lbs) @80 PSI | 5700 |
| Load (Lbs) @100 PSI | 7200 |
| Natural Freq. (CPM) | 76 |
| Design Height (In) | 11.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 3 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 6.20 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 9.53 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS08128 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 7.10 |
| Max. Height | 18.80 |
| Max. Dia. | 12.60 |
Alternate Part #'s :
W015448813
W01-544-8814
