Automann

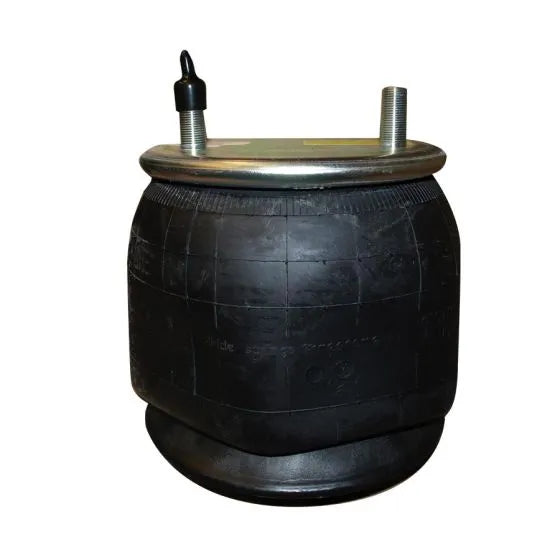

AB1DK23I-P959 - Air Spring Rolling Lobe

AB1DK23I-P959 - Air Spring Rolling Lobe

$102.60

$102.60

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Ref. #: 9978, 1R12-1179, 67588

Brand: Continental/ econoride/ contitech/ automann

Product Level: OE Aftermarket

Description

Composite Base
Plastic Base

Applications: Hendrickson Trailer

Unit Size: 1

Weight: 12.92 lbs

Pkg. Dims (in)

11.8 X 11.8 X 17.9

Applications	Hendrickson Trailer
Type	Rolling Lobe
Brand	Automann Phoenix
Automann Bellows#	1DK23I
Firestone Bellows#	1T15M-4
Contitech Bellows#	9 10-13.5
Load (Lbs) @80 PSI	5600
Load (Lbs) @100 PSI	7100
Natural Freq. (CPM)	74
Design Height (In)	11.50
Bottom Plate Type	Plastic
Top Plate Hole/Stud Qty	2
Top Plate Dia. (A)	9.00
Top Plate C to C Dia. (B)	5.50
Bottom Plate Hole/Stud Qty	1
Bottom Plate Dia. (C)	10.28
Bottom Plate C to C Dia. (D)	N/A
Bottom Part #	BS14011
Bumper	Yes
Bracket	N/A
Min. Height	7.80
Max. Height	19.60
Max. Dia.	12.60
