Automann

566.CT64279 - Air Spring Rolling Lobe

566.CT64279 - Air Spring Rolling Lobe

$163.24
$163.24
Sale Sold out
Shipping calculated at checkout.

Product Overview

Continental’s premiere air spring boasts the ability to maintain ride height and to maximize service life. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving.

Specific Features & Benefits

  • High quality raw material and manufacturer expertise to guarantee long-lasting performance
  • Plastic Base allows for optimized weight and cost savings
  • Features OEM dimensioning for hassle-free assembly
  • Resistant to oil, lubricants, and averse weather conditions
  • Manufactured to be environmentally friendly and longer lasting at an optimal weight
Automann #
566.CT64279
Ref. #
9101, 1R12-113, 64279, 90044201, AS0040
Brand
Continental/ econoride/ contitech/ automann
Product Level
OE
Description
Applications
Reyco Granning, Ridewell, SAF Holland/Neway, Watson and Chalin
Unit Size
1
Weight
18.32 lbs
Pkg. Dims (in)
18 X 12 X 12
Attribute Value
Type Rolling Lobe
Brand Continental
Automann Bellows# 1DK23L
Firestone Bellows# 1T15M-9
Goodyear Bellows# 566-24-3-066, 566-24-3-054
Contitech Bellows# 9 10-19
Triangle Bellows# 6364
Load (Lbs) @80 PSI 5700
Load (Lbs) @100 PSI 7200
Natural Freq. (CPM) 60

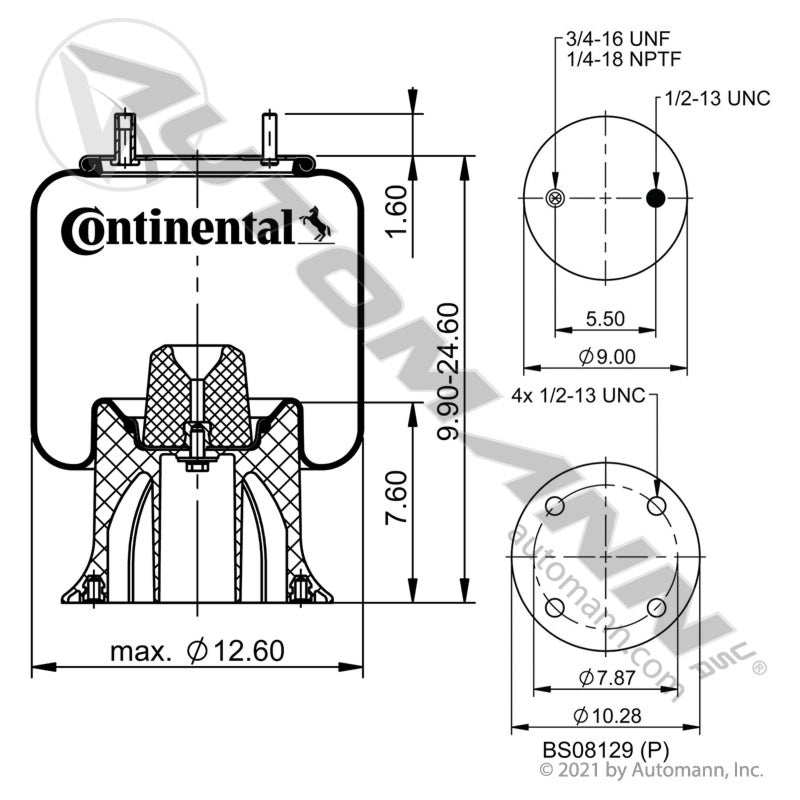

Design Height (In) 15.50
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 2
Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) 5.50
Bottom Plate Hole/Stud Qty 4
Bottom Plate Dia. (C) 10.28
Bottom Plate C to C Dia. (D) 7.87
Bottom Part # BS08129
Bottom Plate Alignment Parallel
Bumper Yes
Bracket N/A
Min. Height 9.90
Max. Height 24.60
Max. Dia. 12.60



Alternate # 1R12-103

Contitech OEM Part Number:   64279
Contitech OEM Part Number:   910-19P315
East Trailer OEM Part Number:   5181508214
East Trailer OEM Part Number:   518-15082-14
Firestone OEM Part Number:   9101
Firestone OEM Part Number:   W013589101
Firestone OEM Part Number:   W01-358-9101
Goodyear OEM Part Number:    1R12103
Goodyear OEM Part Number:  1R12-103
Goodyear OEM Part Number:   1R12113
Goodyear OEM Part Number:   1R12-113
Hendrickson OEM Part Number:   B3842
Hendrickson OEM Part Number:   B-3842
Hendrickson OEM Part Number:   S10443
Hendrickson OEM Part Number:  S3842
Hendrickson OEM Part Number:  S-3842
IHC OEM Part Number:   554768C1
Loadguard OEM Part Number:   SC2038
Mc Neilus&Man OEM Part Number:   23AS83
Neway OEM Part Number:   90044201
Neway OEM Part Number:   90044701
Neway OEM Part Number:   90054218
Neway OEM Part Number:  90057008
Neway OEM Part Number:  90557008
Neway OEM Part Number:  90557009
Neway OEM Part Number:  90557043
Neway OEM Part Number:  90557082
Neway OEM Part Number: AR14151F
Neway OEM Part Number: AR14151G
Oshkosh OEM Part Number:  1KK36
Phoenix OEM Part Number:  10590
Reyco OEM Part Number:   1288301
Reyco OEM Part Number:   12883-01
Ridewell OEM Part Number:  1003589101C
Ridewell OEM Part Number:  S5828C
Ridewell OEM Part Number:   S740C
Taurus OEM Part Number:  AS5049101
Truckstell OEM Part Number:  63647
Volvo/White OEM Part Number:  3130490
Volvo/White OEM Part Number:  85101149
Watson & Chalin OEM Part Number:  AS0040
