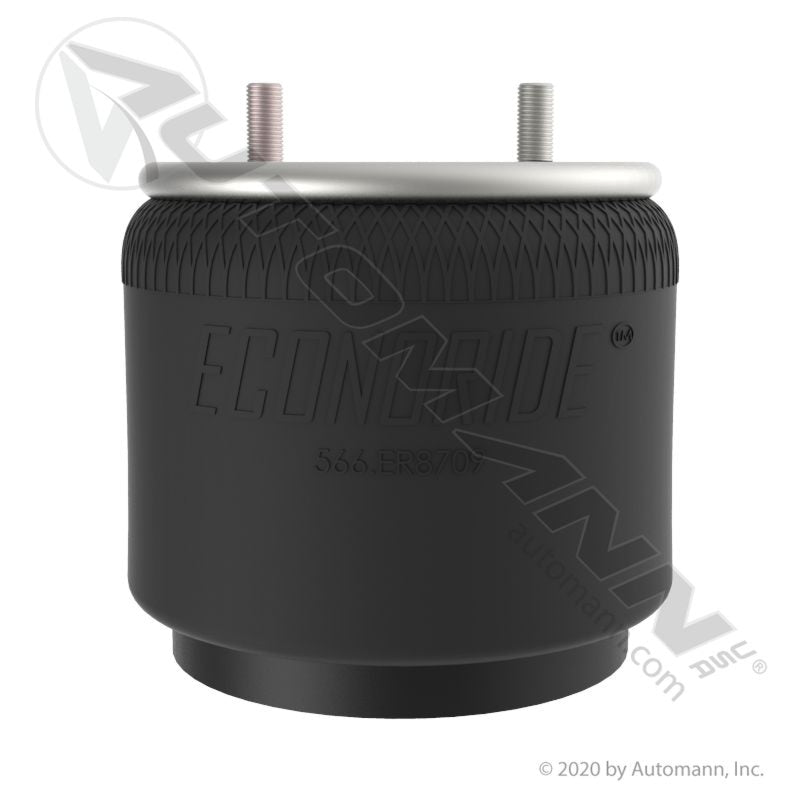

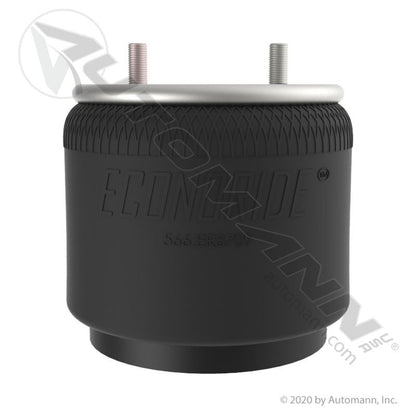

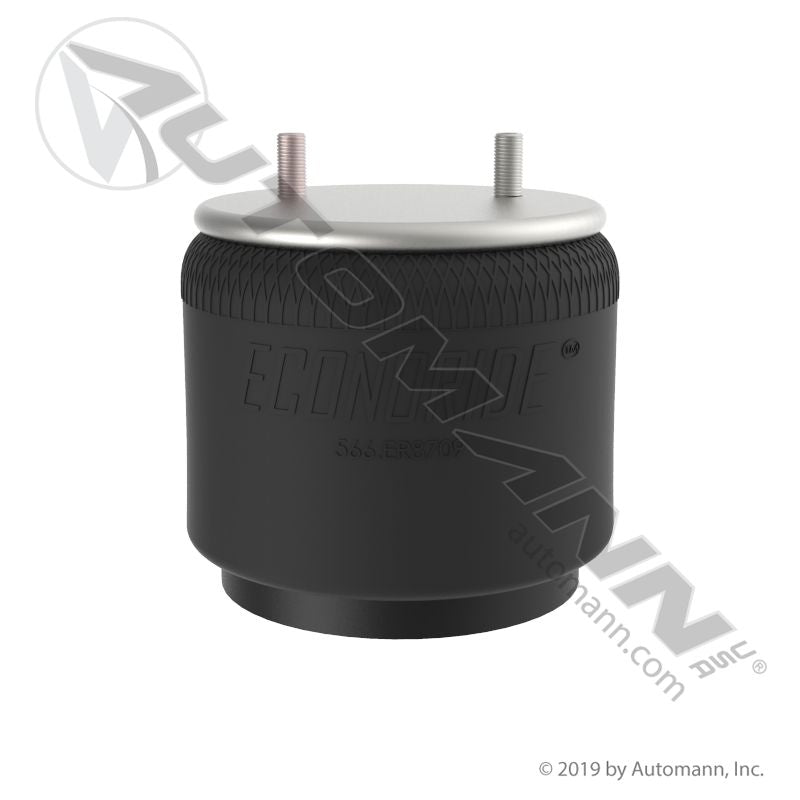

566.ER8709 - Econoride Air Spring Rolling Lobe
566.ER8709 - Econoride Air Spring Rolling Lobe
Couldn't load pickup availability
Product Overview
Econoride’s aftermarket air spring offers a quality product that is economical with impressive performance. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Guaranteed to Keeping Trucks Moving
Specific Features & Benefits
- Cost-effective Air Springs without compromising quality
- Plastic Base allows for optimized weight and cost savings
- Value added, profit enhancing and price competitive
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting at an optimal weight
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DK25A |
| Firestone Bellows# | 1T17CA-5, 1T17B-5 |
| Contitech Bellows# | 10 10.5-15 |
| Triangle Bellows# | 6390 |
| Load (Lbs) @80 PSI | 9040 |
| Load (Lbs) @100 PSI | 11300 |
| Natural Freq. (CPM) | 84 |
| Design Height (In) | 10 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 10.20 |
| Top Plate C to C Dia. (B) | 5.50 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 9.13 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS10704 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 4.9 |
| Max. Height | 19.3 |
| Max. Dia. | 13.9 |

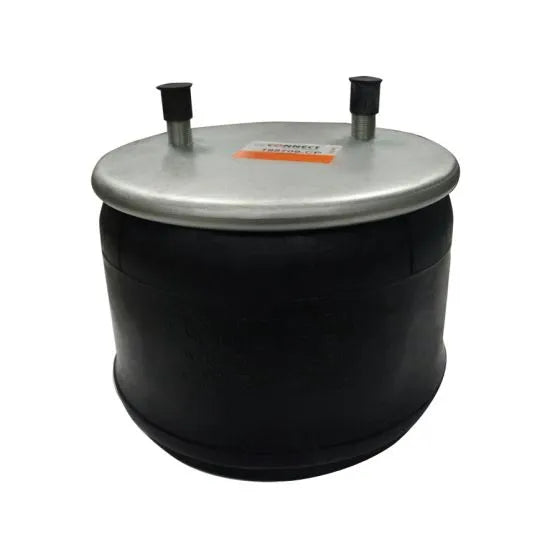

Alternate # 1R13-159
Contitech OEM Part Number: 1010.5-15P460
Contitech OEM Part Number: 64645
Firestone OEM Part Number: 8709
Firestone OEM Part Number: W013588709
Firestone OEM Part Number: W01-358-8709
Goodyear OEM Part Number: 1R13159
Goodyear OEM Part Number: 1R13-159
Goodyear OEM Part Number: 1R13262
Goodyear OEM Part Number: 1R13-262
Goodyear OEM Part Number: 1R13362
Goodyear OEM Part Number: 1R13-362
