Automann

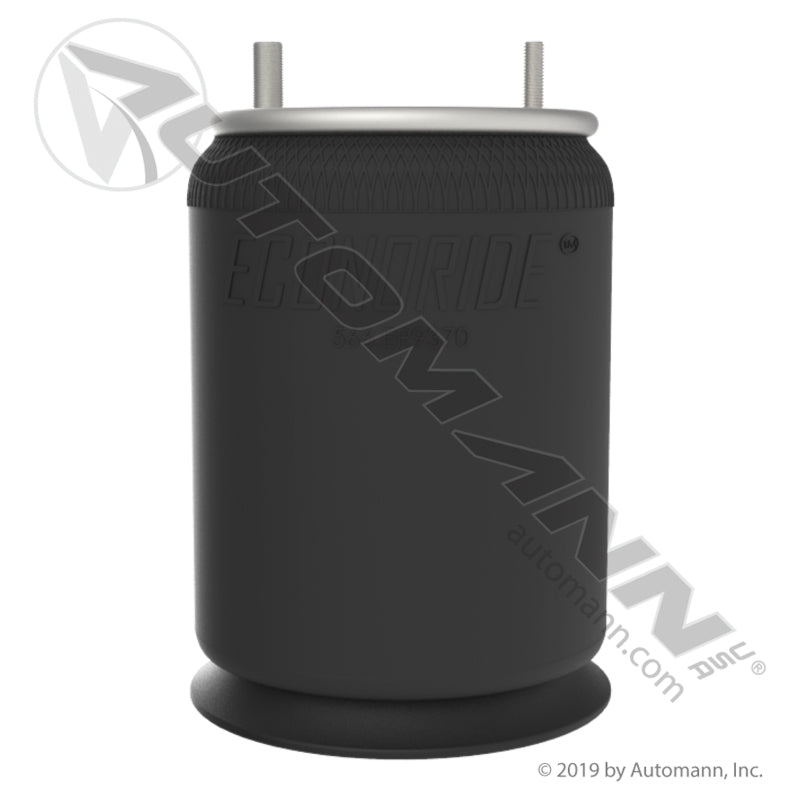

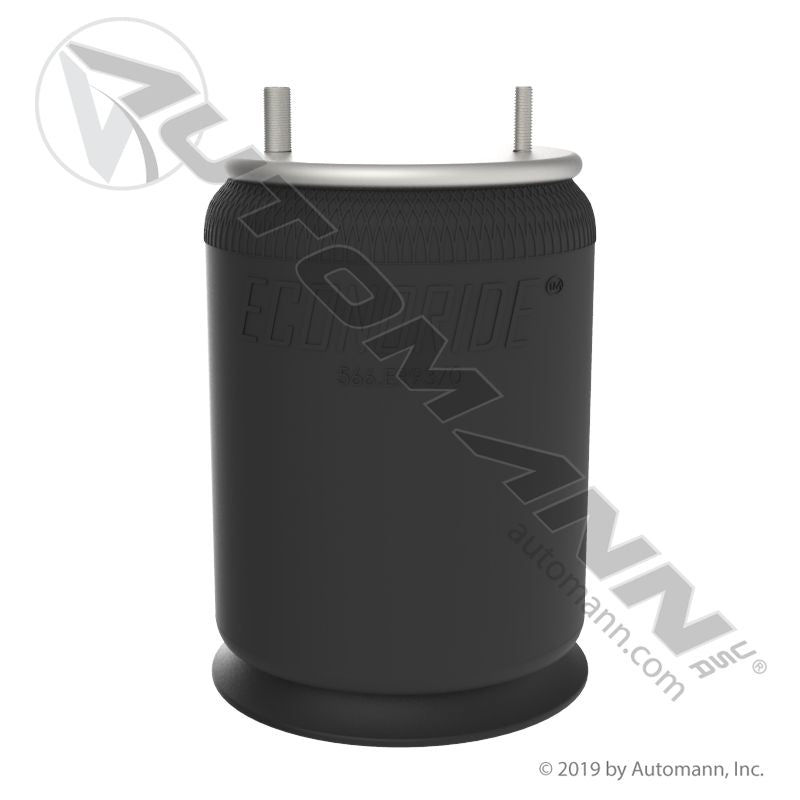

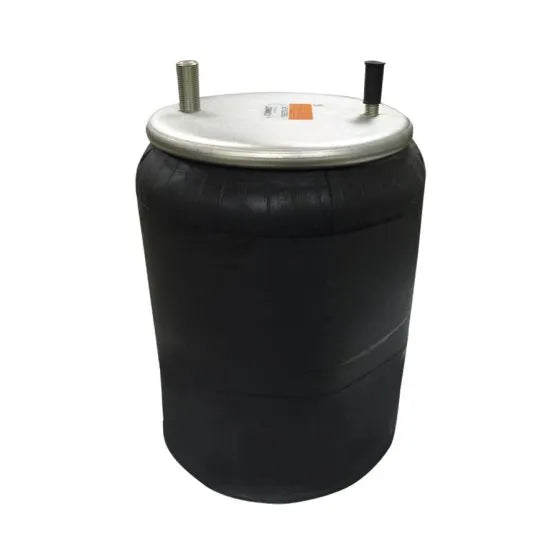

566.ER9370 - Econoride Air Spring Rolling Lobe

Name: 566.ER9370 - Econoride Air Spring Rolling Lobe
Brand: Automann
SKU: 566.ER9370
Price: 121.46 USD
Availability: InStock

$121.46

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Product Overview

Econoride’s aftermarket air spring offers a quality product that is economical with impressive performance. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Guaranteed to Keeping Trucks Moving

Specific Features & Benefits

Cost-effective Air Springs without compromising quality
Plastic Base allows for optimized weight and cost savings
Value added, profit enhancing and price competitive
Features OEM dimensioning for hassle-free assembly
Resistant to oil, lubricants, and averse weather conditions
Manufactured to be environmentally friendly and longer lasting at an optimal weight

Attribute	Value
Type	Rolling Lobe
Automann Bellows#	1DK23N
Firestone Bellows#	1T15M-11
Goodyear Bellows#	566-24-3-090, 566-24-3-117
Contitech Bellows#	9 10-21
Triangle Bellows#	6373
Load (Lbs) @80 PSI	5600
Load (Lbs) @100 PSI	7100
Natural Freq. (CPM)	55
Design Height (In)	18
Bottom Plate Type	Plastic
Top Plate Hole/Stud Qty	2

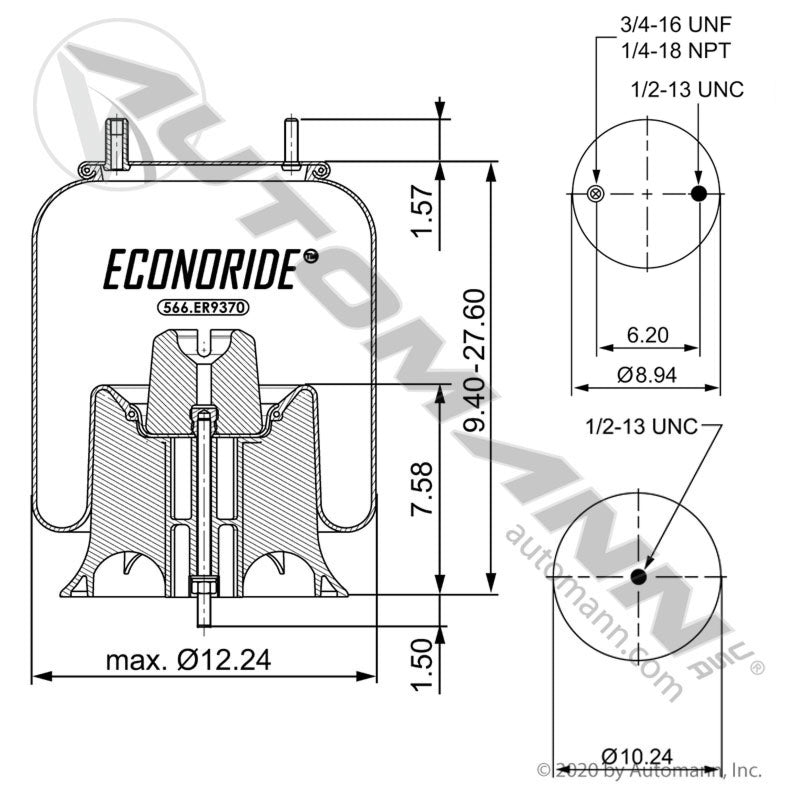

Top Plate Dia. (A)	9.00
Top Plate C to C Dia. (B)	6.20
Bottom Plate Hole/Stud Qty	1
Bottom Plate Dia. (C)	10.24
Bottom Plate C to C Dia. (D)	N/A
Bottom Part #	BS06248
Bumper	Yes
Bracket	N/A
Min. Height	9.9
Max. Height	28.5
Max. Dia.	12.6
