Automann

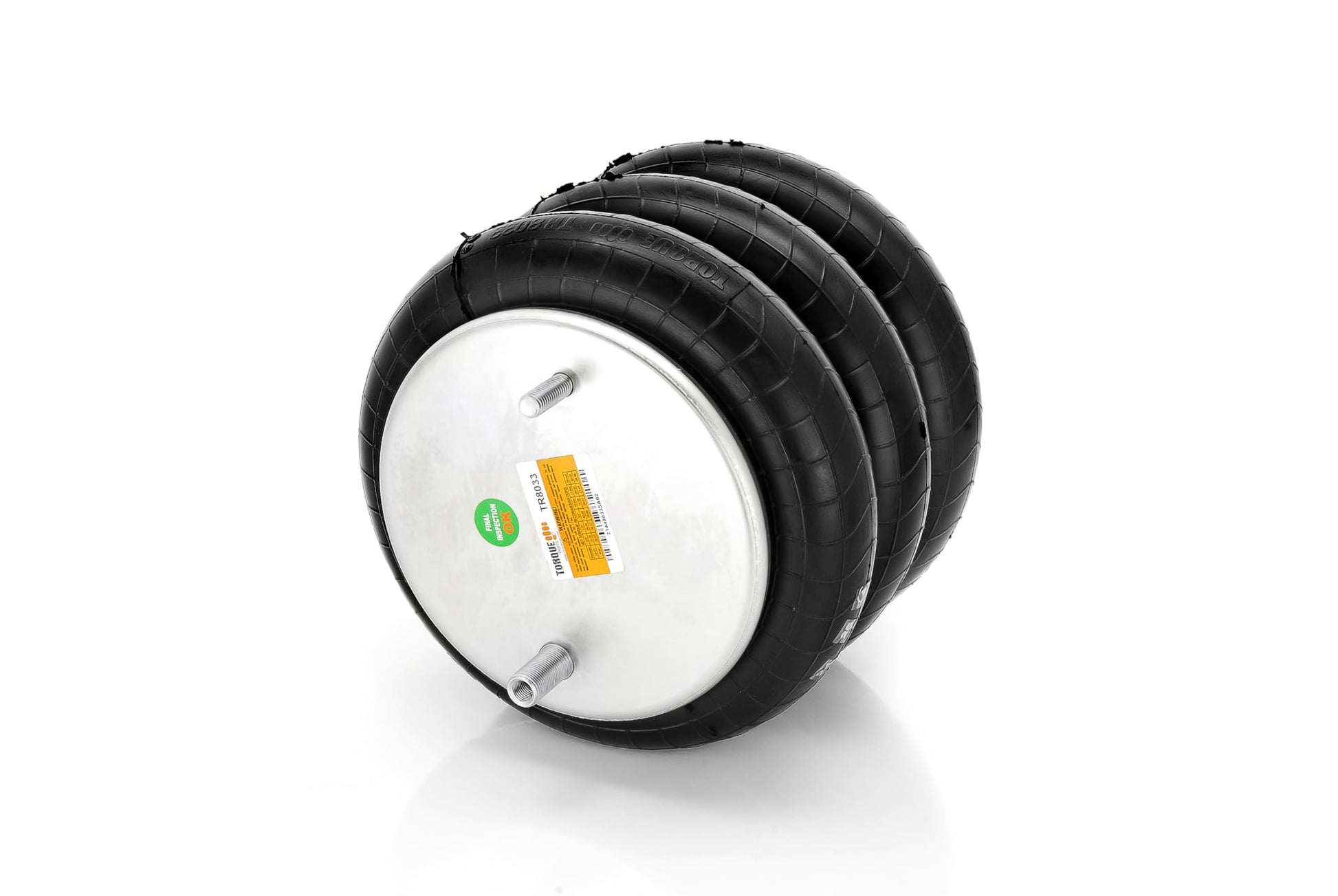

566.ER8033 - Econoride Air Spring Triple Convoluted
566.ER8033 - Econoride Air Spring Triple Convoluted
Regular price
$102.98
Regular price
Sale price
$102.98
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
Econoride’s aftermarket air spring offers a quality product that is economical with impressive performance. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Guaranteed to Keeping Trucks Moving
Specific Features & Benefits
- Cost-effective Air Springs without compromising quality
- The triple convoluted design of the air spring is ideal for handling load fluctuations
- Value added, profit enhancing and price competitive
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting at an optimal weight

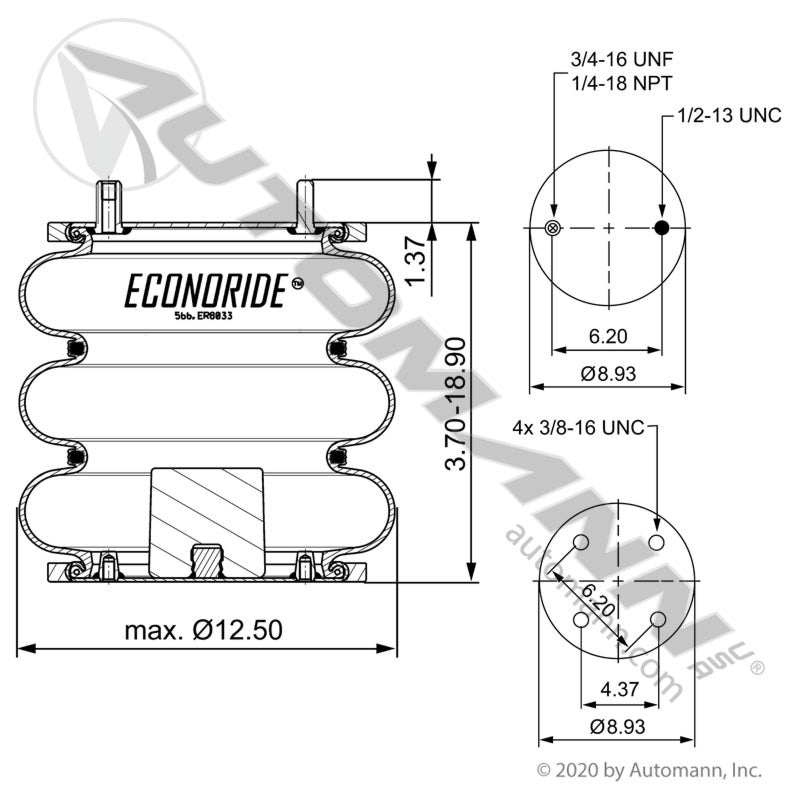

| Attribute | Value |
|---|---|
| Type | Triple Convoluted |
| Automann Bellows# | SP3B22R |
| Firestone Bellows# | 38 |
| Goodyear Bellows# | 578-93-3-100 |
| Contitech Bellows# | FT 330-29 |
| Triangle Bellows# | 6334 |
| Load (Lbs) @80 PSI | 5400 |
| Load (Lbs) @100 PSI | 6800 |
| Natural Freq. (CPM) | 79 |
| Design Height (In) | 12 |
| Bottom Plate Type | N/A |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 6.20 |
| Bottom Plate Hole/Stud Qty | 2 |
| Bottom Plate Dia. (C) | 8.93 |
| Bottom Plate C to C Dia. (D) | 6.20" |
| Bumper | Yes |
| Min. Height | 4.6 |
| Max. Height | 18.9 |
| Max. Dia. | 12.8 |
Alternate # 3B12-312
Contitech OEM Part Number: 64571
Contitech OEM Part Number: FT330-29525
Firestone OEM Part Number: 8033
Firestone OEM Part Number: W013588033
Firestone OEM Part Number: W01-358-8033
Goodyear OEM Part Number: 3B12312
Goodyear OEM Part Number: 3B12-312
